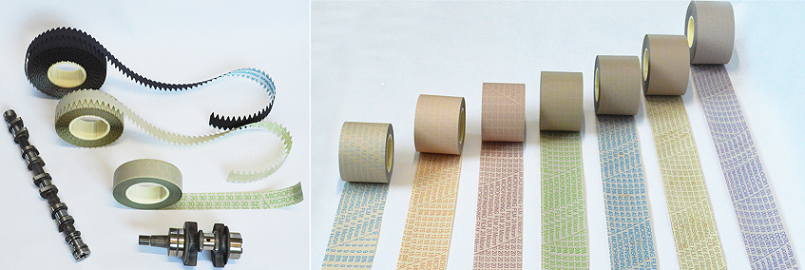

Electrostatic abrasive film(372M) is produced by coating the abrasive grains uniformly on the high strength PET film,
which can provide high efficiency and achieve mirror finishing result. Available abrasive materials are aluminum oxide,
silicon carbide and diamond etc. To meet different hardness of work-piece finishing requirements.
Specification
Material
|
Alumina Oxide(AO)Silicon Carbide (SC)
|
Mesh
|
150
|
180
|
240
|
320
|
400
|
600
|
800
|
1200
|
2000
|
Grit Size /μm
|
100
|
80
|
60
|
50
|
40
|
30
|
20
|
15
|
9
|
Backing Thickness
|
125μm(5mil)
|
Product Specification
|
1380mm*200m 、101.6mm× 45.72m
special specifications can be customized
|
Features
1) Abrasive grains which have sharp surface, are directional arrangement to ensure the efficiency of polishing.
2)Uniform distribution of micro abrasive grains bonded by special resin binder prevents deep scratching and irregular finishing.
3)The product surface has capacity of ruling out scrapings, so it is not easy to be plugged up.
4)With the PET film backing ,the finishing film is resistant to oil and water,and can be applied for dry finishing or wet finishing.
5)Reduce producing cost based on the long durability and continuous polishing.
Application
|
|
|
|

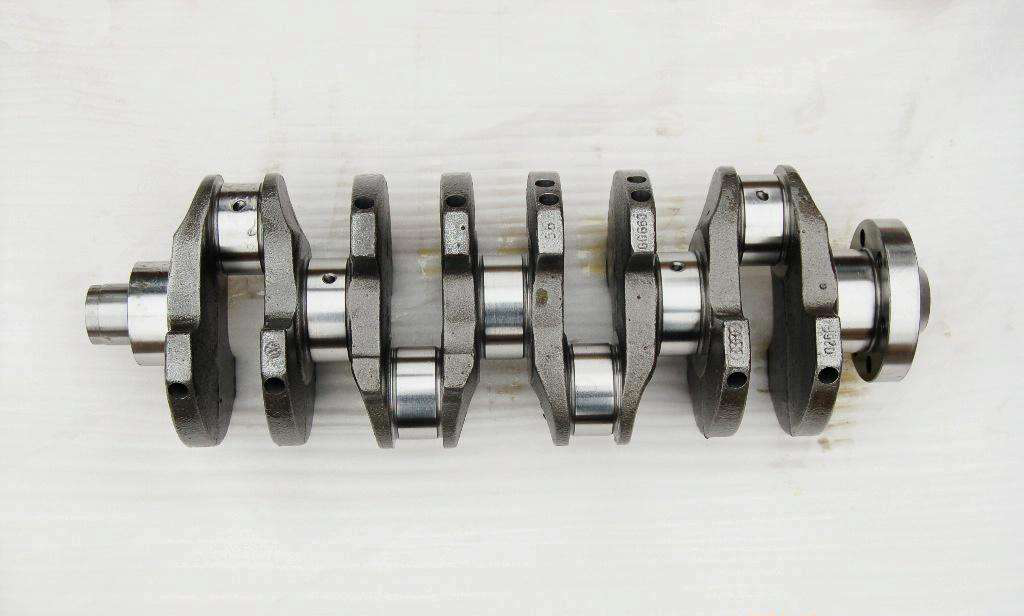

Crankshaft
|
Roller
|

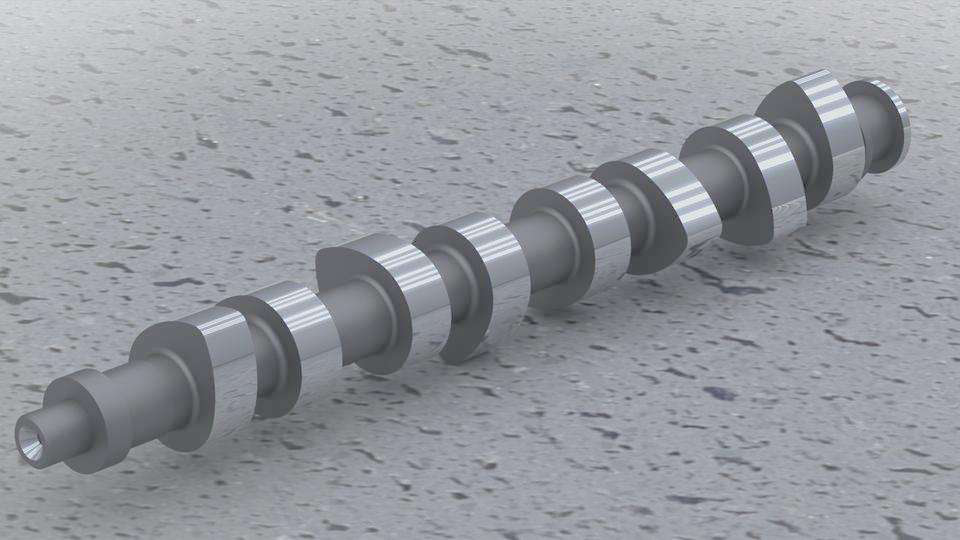

Camshaft
|
Gear-shaft
|
